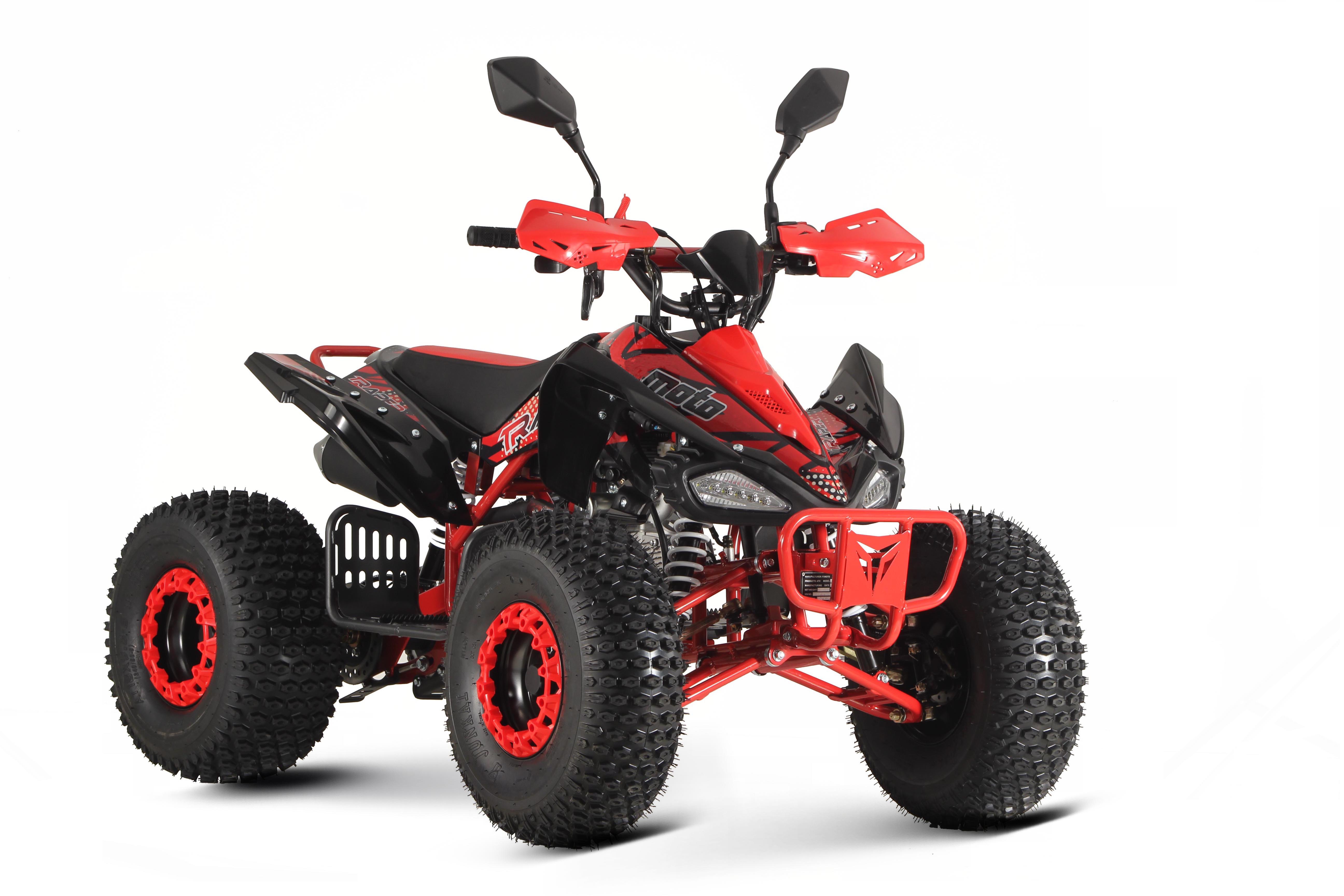

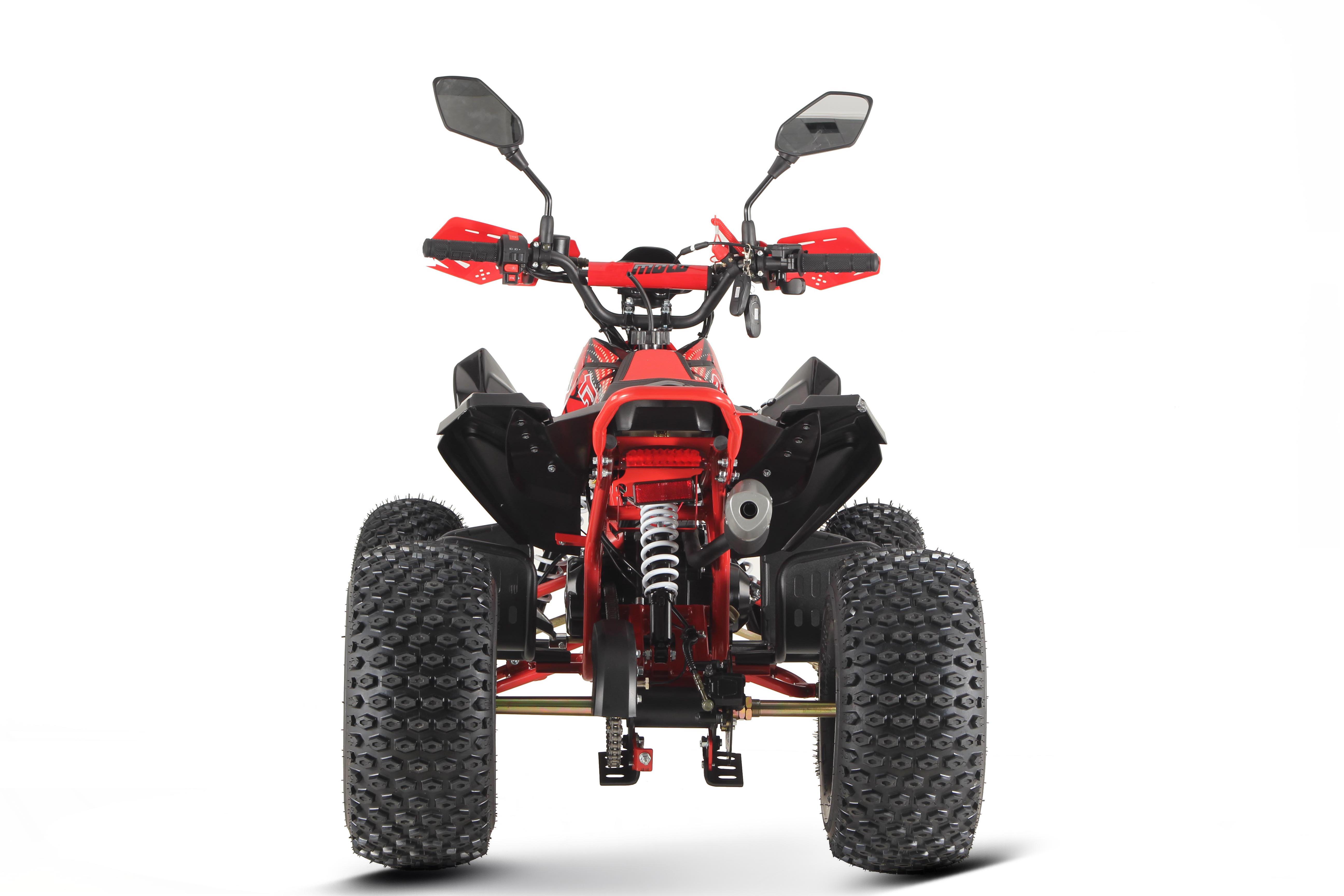

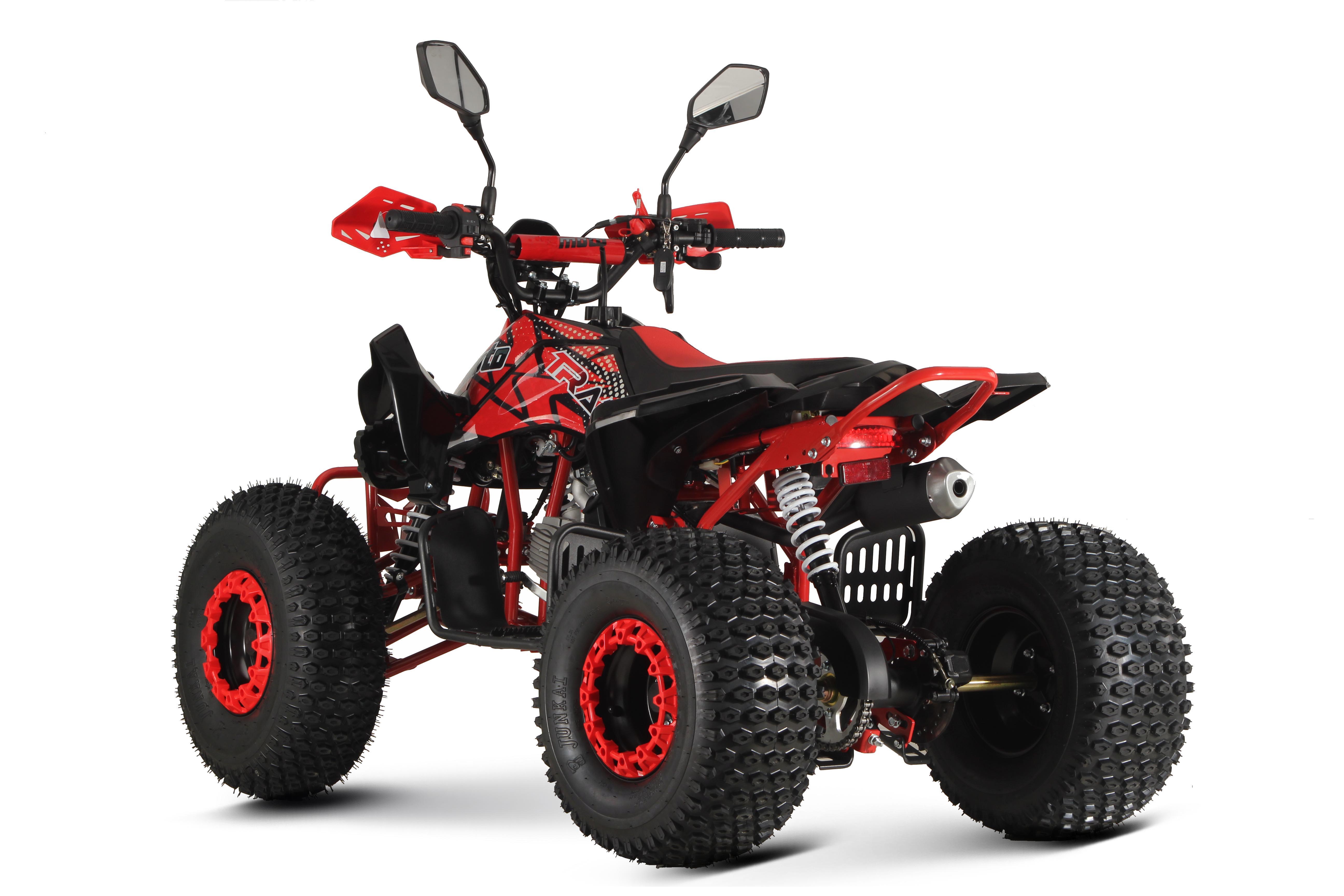

Model: A3-125

>SPECIFICATIONS

>ACCESSORIES





COLORS



分享

相关产品




125CC POWERFULL ENGINE ROBOT WELDING FRAME BETTER WEAR RESISTANCE NEW APPEARANCE DESIGN



ENGINE
Engine Type: 125cc, Air cooled, 4-stroke, 1-cylinder
Start: Electric Start
Ignition: CDI
Transmission:

Auto Clutch, 1-Forward & 1-Reverse with Neutral

Throttle Control: Thumb Throttle
Fuel : Straight Unleaded Petrol
Fuel Capacity: 2.5L
CHASSIS
Suspension/Front: Dual A-arm Spring Shocks
Suspension/Rear: Spring Pre-load Mono Rear Shock with oil damping
Brakes/Front: Drum
Brakes/Rear: Hydraulic Disc Brake (By Left Brake Lever)
Tires/Front: 19×7-8" Knobby Tires
Tires/Rear: 18×9.5-8" Knobby Tires
DIMENSIONS
Overall Size-L*W*H: 1470*930*950 mm
Packing Size-L*W*H: 1300*765*630 mm
Seat Height: 700 mm
G.Weight: 109 kgs
N.Weight: 97 kgs
Max. Load: 82 kgs
OTHERS
Max. Speed: 50km/h+
20FT: 36 Pcs
40HQ: 108 Pcs



· All figures based on the latest information and subject to change without notice and obligation.
