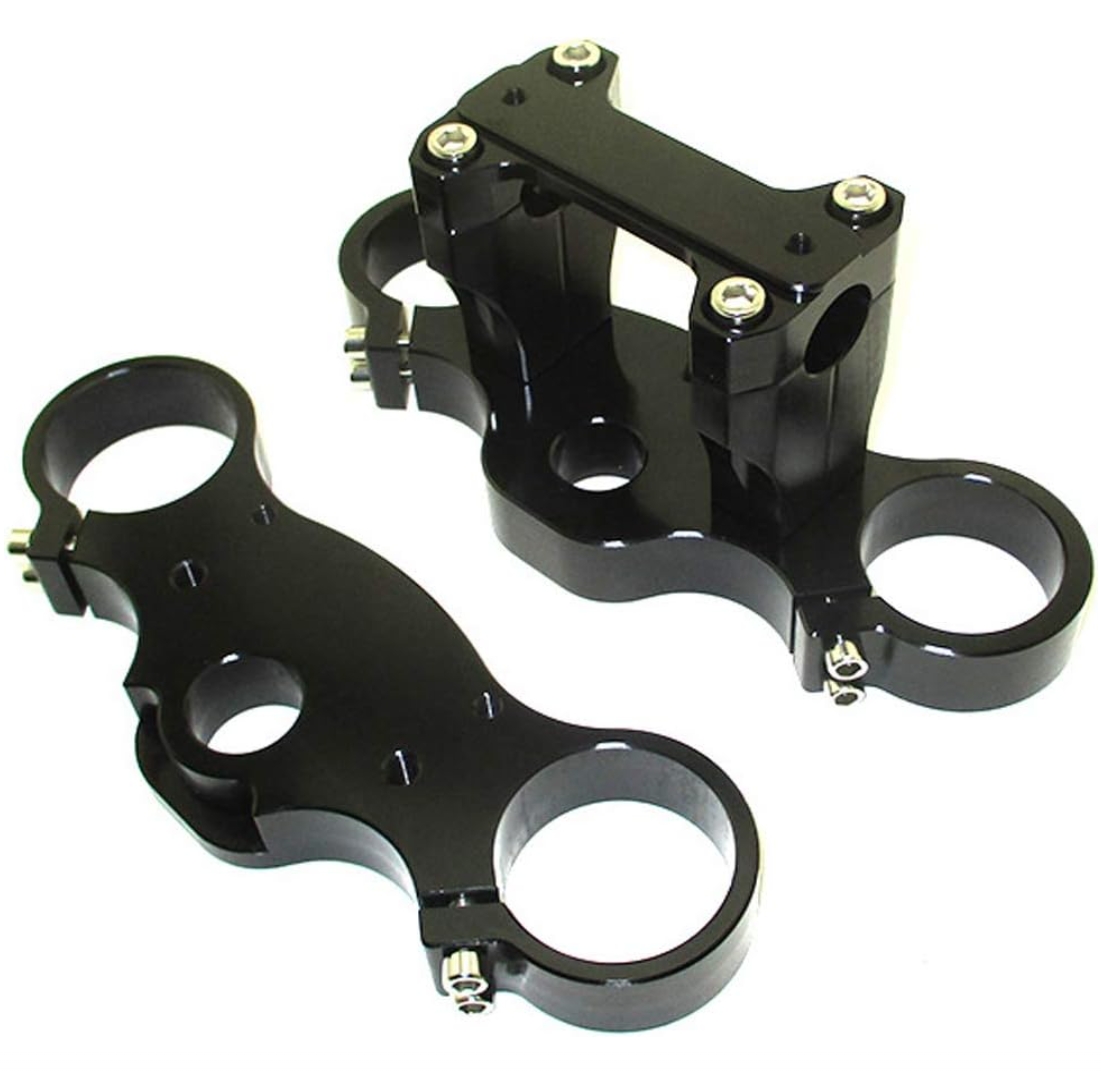

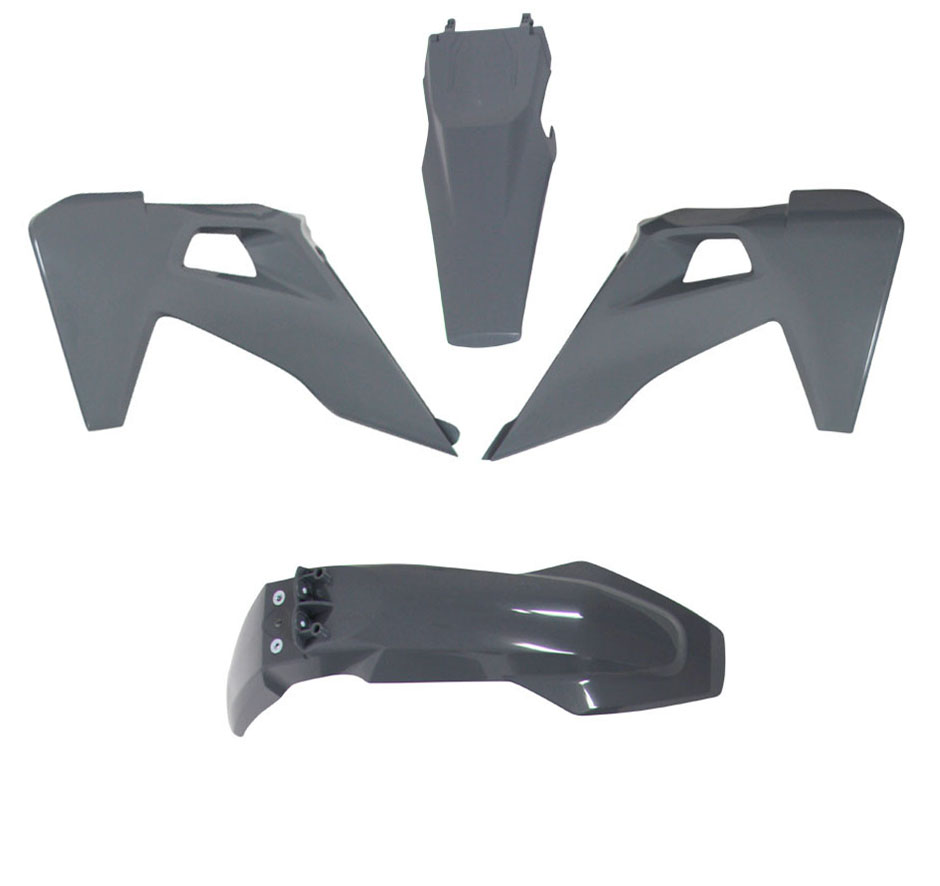

| 125CC POWERFUL ENGINE | CHROME STEEL FRAME | CNC TRIPLE CLAMP | NEW HUS.STYLE FARINGS |

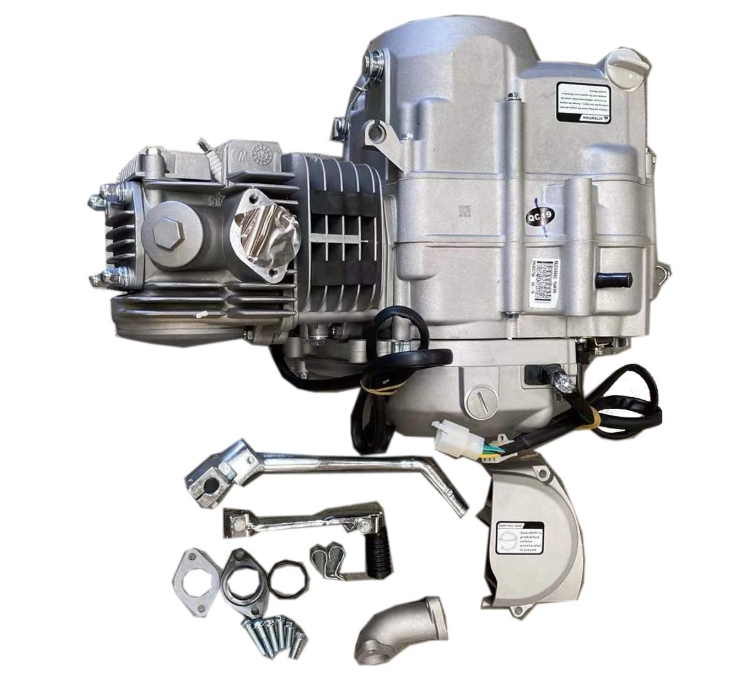

ENGINE
| Engine Type | ZS™, Single Cylinder, 4 Stroke, Air Cooled |
| Displacement | 125 cc |
| Bore x Stroke | 54 mm x 54 mm |
| Max Power | 6.0/7500±500 kw/r/min |
| Fuel Supply | JK ® Carburetor, 22 mm |
| Ignition | CDI |
| Starter |
Kick & Electric Start |
| Transmission | 4-up Manual |
CHASSIS
| Front Suspension | Hydraulic, Inverted Fork,Φ45*Φ48-735mm |
| Rear Suspension | 310 mm Spring Pre-load & Rebound Shock |
| Front Brake | Disc |
| Rear Brake | Disc |
| Front Wheel / Tire | Steel / 60/100-17 |
| Rear Wheel / Tire | Steel / 80/100-14 |
| Frame | Chrome steel tube Frame |
| Swingarm |
Steel, "Straight" Type |
DIMENSIONS
| Wheelbase | 1260 mm |
| Seat Height | 840 mm |
| Ground Clearance | 3200 mm |
| Fuel Tank | 4.5 L / 1.2 Gal. |
| N.W(Kgs) | 78 KGS |
| L x W x H | 1810 x 740x 1100 mm |
OTHER
| Colors | Orange,Green, Red, Blue, Black |
| 40HQ | 185 PCS |
- All figures based on the latest information and subject to change without notice and obligation.
