描述
 |
 |
 |
 |

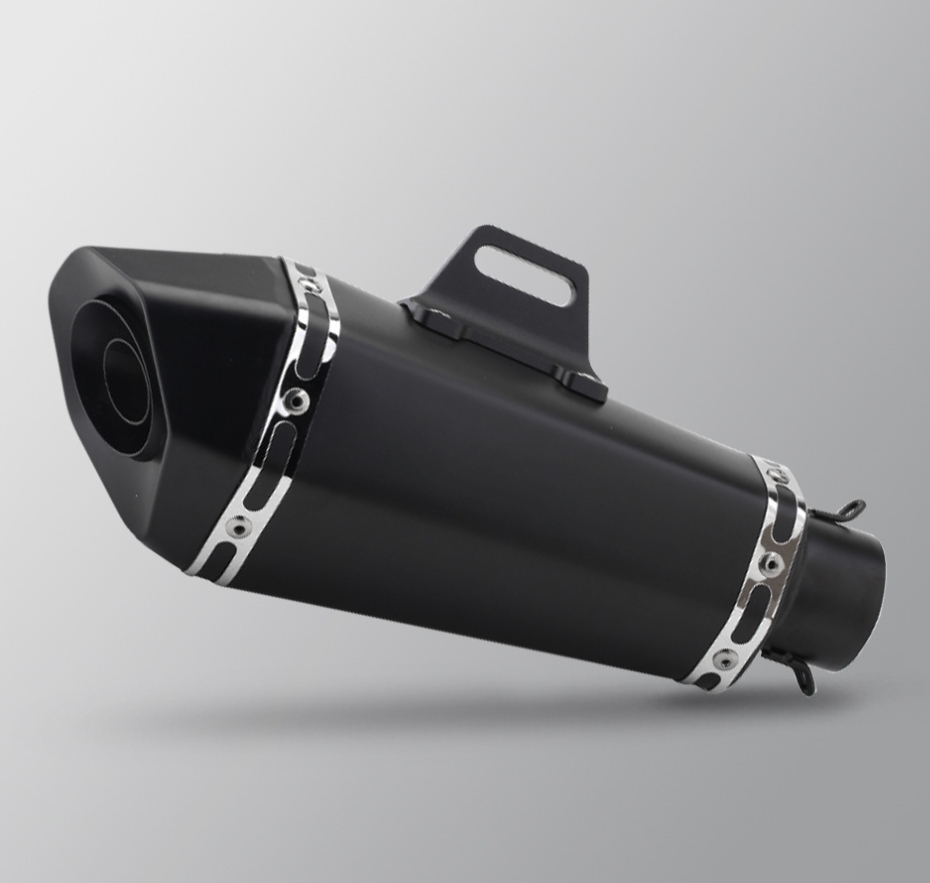

| HIGH PERFORMANCE MUFFLER-SK4-190 | 190CC OIL COOLING POWERFUL ENGINE | Linkage System | NEW STRENGTHEN SWINGARM |

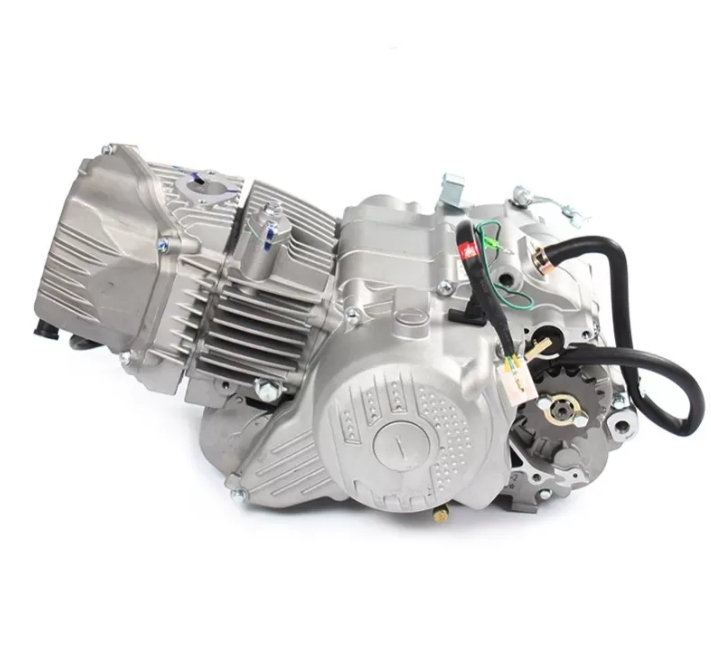

ENGINE
| Engine Type | ZS™, Single Cylinder, 4 Stroke, Oil Cooled |
| Displacement | 190 cc |
| Bore x Stroke | 62mm x 62 mm |
| Max Power | 12（1±5%）/9500（1±1.5%） |
| Fuel Supply | NIBBI ® Carburetor, PE28J |
| Ignition | CDI |
| Starter |
Kick & Electric |
| Transmission | 5-International gears, Manual Clutch |
CHASSIS
| Front Suspension | Hydraulic, Inverted Fork,Φ45*Φ48-780mm |
| Rear Suspension | 410 mm Spring Pre-load & Rebound Shock |
| Front Brake | Disc |
| Rear Brake | Disc |

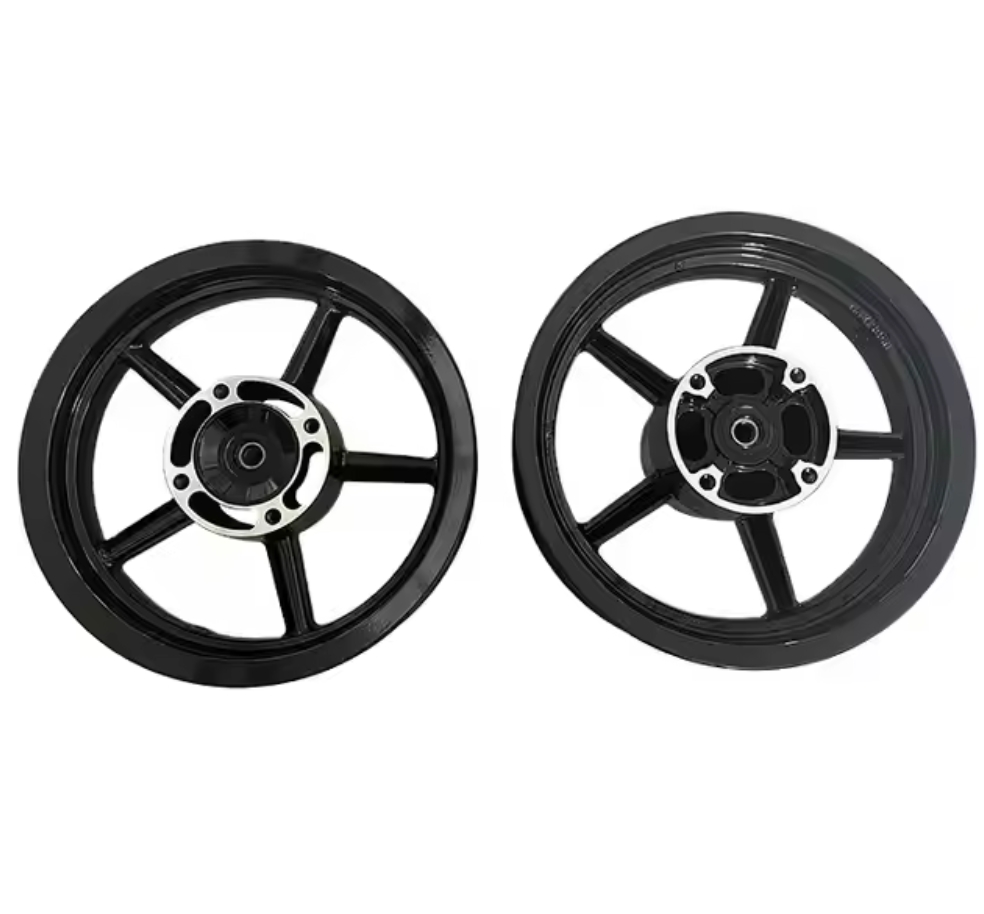

| Front Wheel / Tire | Steel / 80/100-19 |
| Rear Wheel / Tire | Steel / 100/90-16 |
| Frame | Double Bar Steel Frame w/ Sub-frame |
| Swingarm |
Steel, "Straight" Type |
DIMENSIONS
| Wheelbase | 1355 mm |
| Seat Height | 880 mm |
| Ground Clearance | 310 mm |
| Fuel Tank | 7.5 L |
| N.W(Kgs) | 78 KGS |
| L x W x H | 2000x740x1130 mm |
OTHER
| Colors | Orange,Green, Red, Blue, Black |
| 40HQ | 105 PCS |
- All figures based on the latest information and subject to change without notice and obligation.
