| HIGH PERFORMANCE MUFFLER | 190CC OIL COOLING POWERFUL ENGINE | DNM MTG-RC REAR SHOCK | 12INCH SLICK MOTARD TIRES |
ENGINE
| Engine Type | ZS™, Single Cylinder, 4 Stroke, Oil Cooled |
| Displacement | 190 cc |
| Bore x Stroke | 62mm x 62 mm |
| Max Power | 12（1±5%）/9500（1±1.5%） |
| Fuel Supply | NIBBI ® Carburetor, PE28J |
| Ignition | CDI |
| Starter |
Kick & Electric |
| Transmission | 5-International gears, Manual Clutch |
CHASSIS
| Front Suspension | Hydraulic, Inverted Fork,Φ45*Φ48-735mm,Fully adjustable. |

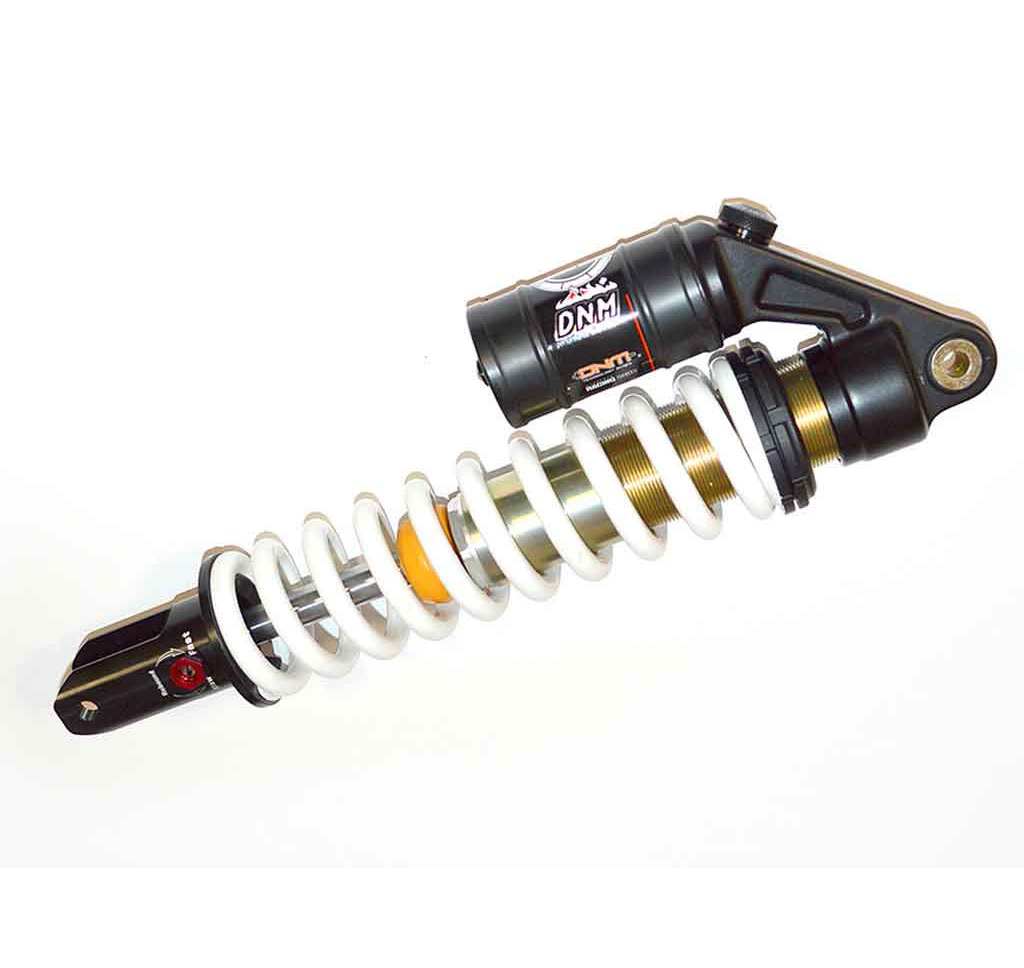

| Rear Suspension | DNM MTG-RC 310 mm Rear Shock |
| Front Brake | Disc |
| Rear Brake | Disc |
| Front Wheel / Tire | 6063 aluminium Mag wheel 2.50*12; 90/90-12 |
| Rear Wheel / Tire | 6063 Aluminium Mag wheel 3.0*12 ; 120/70-12 |
| Frame | Double Bar Steel Frame w/ Sub-frame |
| Swingarm |
Aluminium, "Straight" Type |
DIMENSIONS
| Wheelbase | 1200 mm |
| Seat Height | 765 mm |
| Ground Clearance | 280 mm |
| Fuel Tank | 4.5 L |
| N.W(Kgs) | 78 KGS |
| L x W x H | 1670x725x1020 mm |
OTHER
| Colors | Orange,Green, Red, Blue, Black |
| 40HQ | 132 PCS |
- All figures based on the latest information and subject to change without notice and obligation.
